TRANSFER EQUIPMENT SERIES

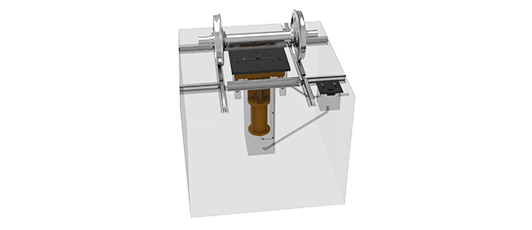

RTLD-ZP01 Built-in Electric Wheelset Turntable
SpeedTurntable dynamic load
1 r/min2.5 t
Rail top height differenceLongitudinal clearance of rail
≤2 mm≤10 mm

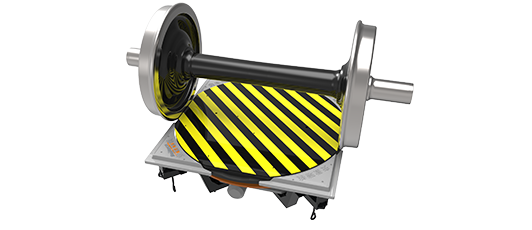

RTLD-ZG01 Pneumatic Wheelset Turntable
Load capacityRotation angle
≥3000 kg0–90
Cylinder diameterAir source
Ф300 mm0.4–0.8 MPa

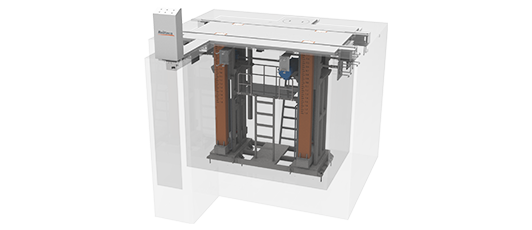

RTZJ-JS01 Bogie Lifter
Maximum lifting heightMaximum lifting capacity
1600 mm10 t
Applicable wheelbaseApplicable wheel diameter
Ф2500 mmФ780-920 mm

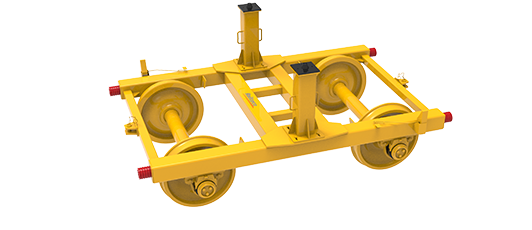

RTZJ-GZ01 Dummy Bogie
Running SpeedLoad carrying capacity
≤10 km/h≥20 t
Applicable WheelbaseApplicable track gauge
2400 mm1435 mm

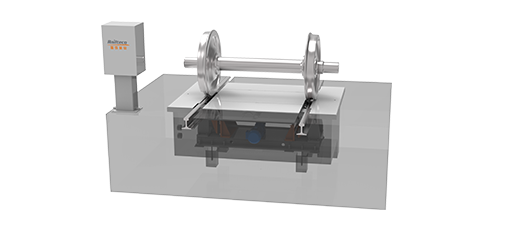

RTLD-GL02D Wheel Rotator
Equipment powerLifting load capacity
1.5 kW≥ 2.5 t
Applicable track gaugeApplicable wheel diameter
1435 mm750 mm – 920 mm
RTZJ-YJ01 Mobile car lifting jack
Overall dimensionsMaximum vertical stroke of the carriage
1200 × 1020 × 3000 mm1600 mm
Lifting/lowering speed of the carriageLifting capacity per car lifting jack
≤300 mm/min20 t
RTLD-AGV01 Intelligent Wheel set AGV Transport System
Continuous Operating DurationSelf-weight
12 hApprox. 230 kg
Charging RateNo-load running Speed (100% rated)
10% per hour8.5 m/min
RTLD-AGV02-I Intelligent Bogie AGV Conveying System
Operating speed (100%)Positioning accuracy
15 m/min±10 mm
Gripper extension speedCharging speed
15 s10% per hour
